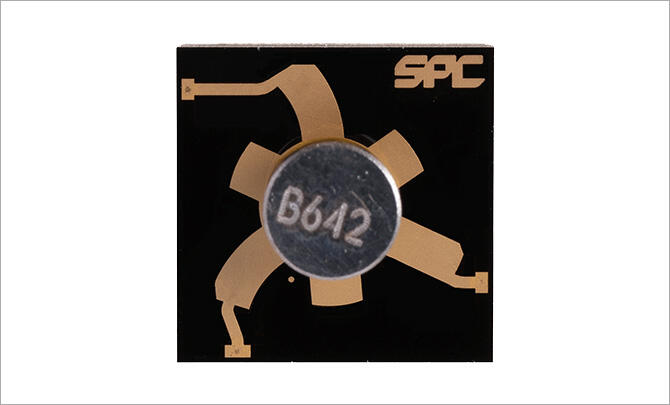

MIC Circulator/Isolator
- SMD(Surface Mount Device) type Circulator/ Isolator applied our extensive technological know-how gained in developing ferrite part.
- Low Loss, wideband, High isolation, Thin film type.
Frequency : C band to Ka band, Bandwidth 10 to 25%.
Operating temperature range: -45 ° C to 125 ° C.
Features
- Applicable to wideband spectrum, providing high performance and high quality.

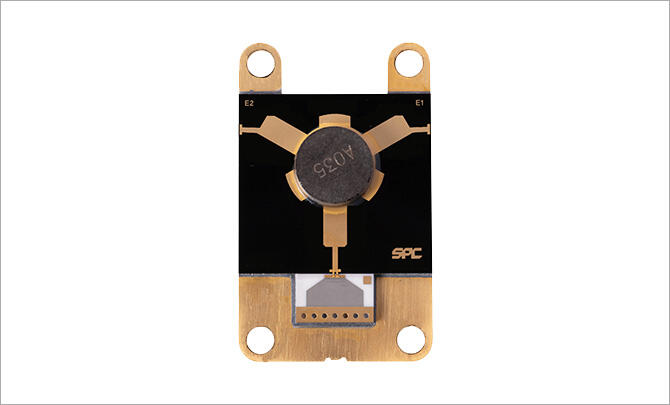

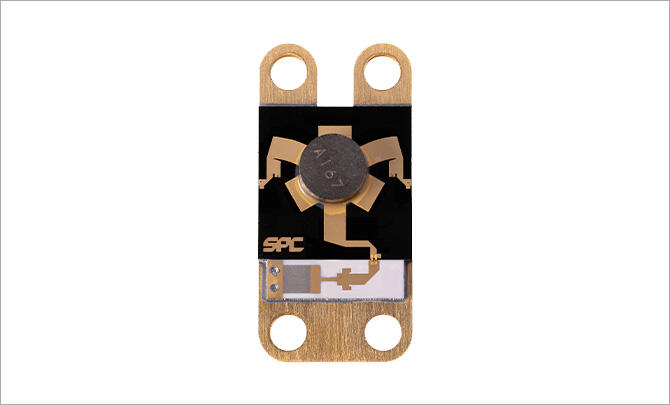

- Customizable to Isolator combined with Circulator and Dummy incorporated ALN (aluminum nitride) board
- The tramission lines that are formed with thin film depositing enable electrical performance to be stable.
主要性能
横にスクロール出来ます
| Model No. | Frequency(GHz) | Band width(%) |
|---|---|---|
| CUG-SC1H-116A | 3.8 | 21.10% |
| CUG-X1-130A | 7.5 | ～10% |
| CUG-X1-127A | 8.2 | ～10% |
| CUG-X1-131A | 9.7 | ～10% |
| CUG-X1-128A | 10.1 | ～10% |
| CUG-X-*A | 12 | ～10% |
| CUG-K1-*A | 14 | ～10% |
| CUG-K1-*A | 15 | ～10% |
| CUG-K1- * A | 20 | ～8% |
| CUG-K1- * A | 25 | ～8% |
