Microwave oscillator
- High Stability S and C Band Frequency Pulse Signal Oscillator.
- These Osillators are suitable and used for Klystron sighnal source at Medical Linear Accelerators (Medical LINAC) and High Power Accelerators at Universities, Research Laboratories.

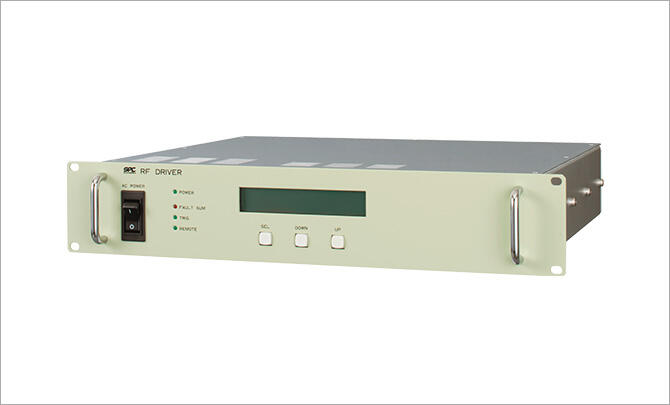

S band RF DRIVER

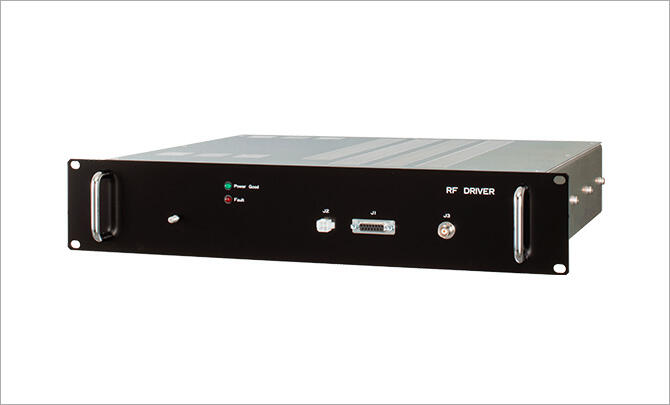

NEW S band RF DRIVER
Features
- Built-In PLO and ALC Logic design realize over 240W high stability high power output.
- The output frequency and RF output pulse width can be changed by external control.
- Lineup of S band 240W, C band 300W, 150W
- Added run-up of high-precision output power and improved output power reproducibility
- There is a type equipped with a radiation-resistant FPGA device
Specifications（NEW S band RF DRIVER）
横にスクロール出来ます
| Item | Specifications |
|---|---|
| Frequency range | 2853～2859MHz |
| RF Output PulsePower | 240W min |
| Output power accuracy | ±10% |
| Output Power Repeatability (stability) | ±2W以下@121-200W |
| Pulse Width | 2～13μs |
| Pulse Repetition Frequency | 9～420Hz |
| Case Size | 431×381×80mm（Nom.） |
| Weight | 10kg max |
