- Compact Design RF Switch
Compact Design RF Switch
- Wideband, low loss, high speed switching RF switch
- High Performance RF Switch that satisfies 2 ～ 18GHz wideband, 60dB Isolation, 50nSec switching speed. SPDT, SPST Models available.

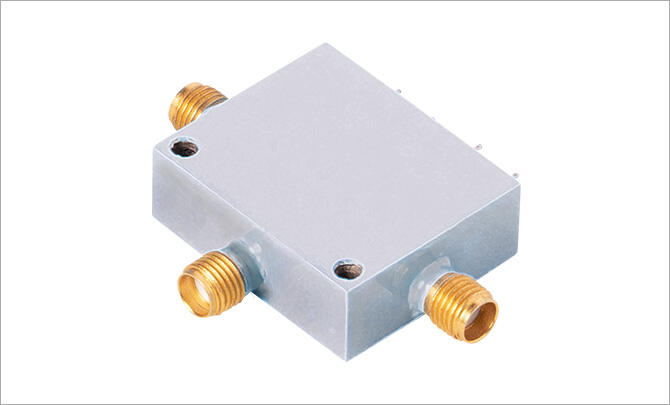

SPDT

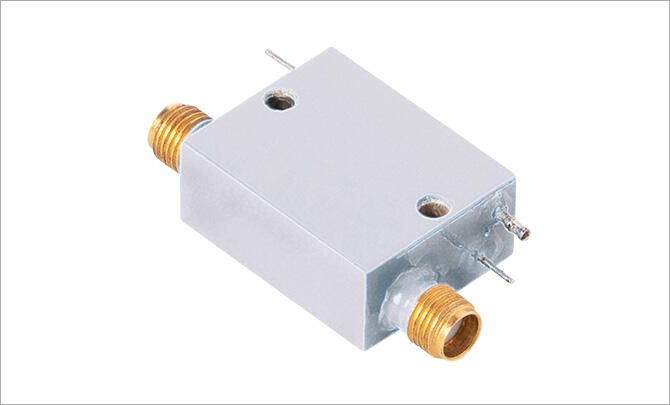

SPST
Features
- Wideband: 2-18GHz
- High performance: Isolation 60 dB or more, switching time 50 ns or less
- Operating temperature range: -54℃ to + 85℃
- Maximum rated input power: 1W (CW)
- Supply power supply voltage: 15V, control signal: TTL logic level
Specifications
横にスクロール出来ます
| Item | Specifications |
|---|---|
| Insertion Loss Variation vs Frequency | 2GHz～4GHz：1.4dB max |
| 4GHz～8GHz：1.6dB max | |
| 8GHz～12GHz：1.8dB max | |
| 12GHz～18GHz：2.7dB max | |
| Isolation | 60dB min |
| Switching Speed | 50nsec max |
| weight | 25g max |
| Max input POWER | 1W（CW） |
